mark poulson Posted September 30, 2020 Report Share Posted September 30, 2020 Does anyone here know what kind of wood the original A.C. Plugs were made from? Quote Link to comment Share on other sites More sharing options...
bigblue2 Posted September 30, 2020 Report Share Posted September 30, 2020 are you talking about ac spark plugs been out for years! and there made of metal ! Quote Link to comment Share on other sites More sharing options...
21xdc Posted September 30, 2020 Report Share Posted September 30, 2020 (edited) AC Shiner is balsa. Edited September 30, 2020 by 21xdc Quote Link to comment Share on other sites More sharing options...
swimb8s Posted September 30, 2020 Report Share Posted September 30, 2020 Hey Mark , I'm thinking you may be asking about the Luhr Jensen A C plug , so far all I see from TW and even the AC plug website listed as wood . I have an original and maybe I can find original packaging to see if it gives any info . Tommy 1 Quote Link to comment Share on other sites More sharing options...
mark poulson Posted September 30, 2020 Author Report Share Posted September 30, 2020 (edited) 9 hours ago, bigblue2 said: are you talking about ac spark plugs been out for years! and there made of metal ! I'm talking about the topwater lures/wake baits that Allan Cole made back in the early 90's. https://acplugs.com/ Edited September 30, 2020 by mark poulson Quote Link to comment Share on other sites More sharing options...
jigmeister Posted September 30, 2020 Report Share Posted September 30, 2020 I have an original Allen Cole made version and the wood looks to be white like either pine or basswood ? I have made a few copies for myself out of red western cedar 1 1/2" closet rod Quote Link to comment Share on other sites More sharing options...
mark poulson Posted September 30, 2020 Author Report Share Posted September 30, 2020 7 minutes ago, jigmeister said: I have an original Allen Cole made version and the wood looks to be white like either pine or basswood ? I have made a few copies for myself out of red western cedar 1 1/2" closet rod Thanks. That sounds right. Do you know what he used to seal his wood, and to top coat it? The originals were really hardy, and took a lot of abuse. I'm trying to figure out how to get the same lively action, like balsa, and still have a strong bait with a loud knock when the joint hits each side. Quote Link to comment Share on other sites More sharing options...

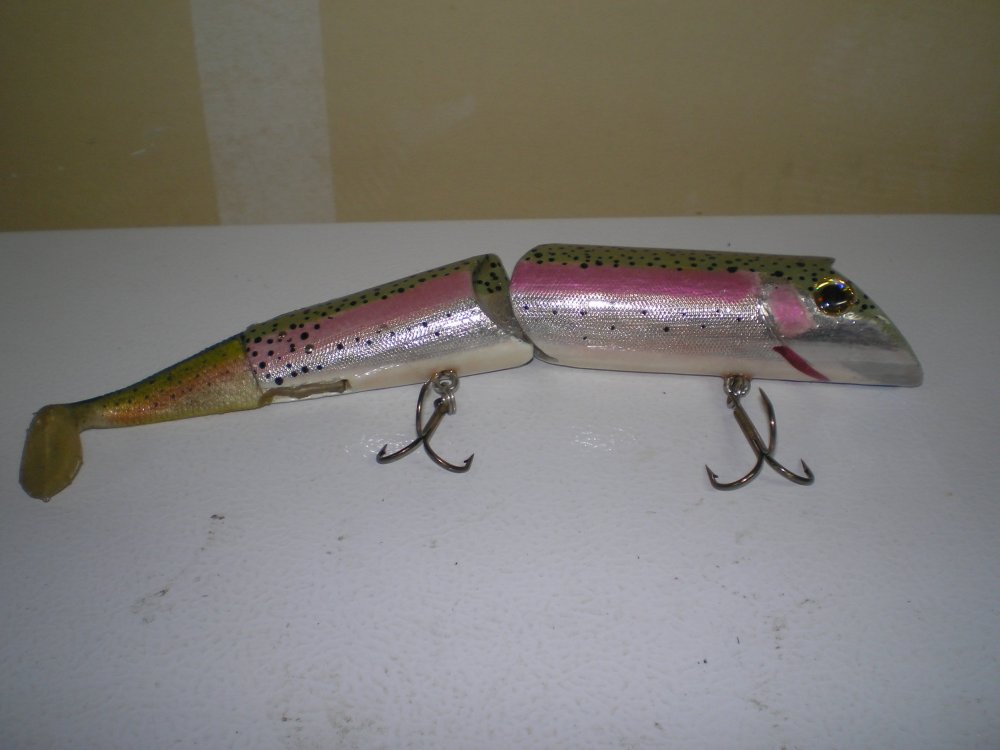

jigmeister Posted September 30, 2020 Report Share Posted September 30, 2020 One of the first copies I made I foiled and painted and sealed with 2 ton devcon . Water got in and the wood swelled and split the devcon outer coating . The joints really take a beating during casting when the lure hits the water and paint chipping will occur . If you're trolling the bait like Mr. Cole there is less of a chance of this happening . The way to seal the wood to prevent it soaking up water is to mix up mineral spirits and linseed oil and soak the lure blank overnight in this mixture . Take it out the next day and hang it up till dry then prime and paint with oil based paint . The mix ratio is 9 parts mineral spirits to 1 part linseed oil . None of my future attempts ever split so this stuff works . Don't leave linseed oil on a rag or spontaneous combustion can occurs hours later and start a fire . Attached picture is a foiled AC plug copy I made that measures 12" from nose to tail 1 1 Quote Link to comment Share on other sites More sharing options...
barrybait Posted October 1, 2020 Report Share Posted October 1, 2020 The attached picture is an original 9" AC Plug Minnow with Allan Cole signature. They sold to Optimum Baits. The top 2 are 7" AC Minnows made by Optimum that I have stripped for repaint. I have been making baits similar to these but with more of a verticle profile like a golden shiner that we have here in the delta. Optimum Baits does not make them anymore. They are productive baits that I want in my tackle box. I may be the responsible person that caused Mark to consider making a bait out of anything except PVC but he has heard the wood knock of my baits. Wood is more trouble but it fishes well and there is nothing like that wood knock like knocking on your front door to help call fish up. I made the first ones out of Bass wood, then I made two out of Pine, and now one of Balsa. I am always trying to get a good seal on the baits which is crucial for longevity and helps with the knock. I have been using Penetrating Epoxy which is a two part 2:1 Epoxy which is used to penetrate and stabilize wood that has lost strength due to dry rot or other failures. I can't find it in their store anymore. Tap Plastics told me it is just a longer cure 2 part epoxy that is also thinner. The key to my application is to heat the wood with my heat gun and keep applying this epoxy. This expands the air out of the end grain so that it sucks the epoxy in and gives me durability for my knock at the hinge. Previously I applied the epoxy then heated the lure and it really foams up. I like the idea of boiled linseed oil overnight soak but it still seems like I need to heat the wood up first or the air is just trapped in the wood end grain. Wood is like a bunch of tiny straws. However we do it, we still only really increase the amount of sealer at the end grain, I don't think any more sealer gets into the side and does not increase the durability of the sides of the "straws" because it doesn't soak in. The only way you can get more durability on the sides is with more coats for more thickness. Most of us who have been here awhile remember the video of the wood lure in sealer in a vacuum chamber. Flip the vacuum pump on and it looks like is blows up with all the air coming out of the wood end grain. You can get enough sealer sucked into the wood to make it sink like this. That is not what I am trying to do. Just warm up the wood enough that you get it a little ways into the end grain. By the way, I use a fan on low to keep fumes moving off from my work station. I am always wondering how either Allan Cole or Mike Shaw sealed their baits because they got them fairly durable. The last bait I made, the Balsa one, is probably at least half again more active waking than the Basswood ones but it is more difficult to make durable. (All wood baits will fail) The penetrating epoxy works well, but with the really light weight soft woods I have to put multiple coats of UV Cure Polyester Resin to help keep the hooks from penetrating the top coat. I would be interested to hear others opinions on this. Barry 1 Quote Link to comment Share on other sites More sharing options...
mark poulson Posted October 2, 2020 Author Report Share Posted October 2, 2020 9 hours ago, barrybait said: The attached picture is an original 9" AC Plug Minnow with Allan Cole signature. They sold to Optimum Baits. The top 2 are 7" AC Minnows made by Optimum that I have stripped for repaint. I have been making baits similar to these but with more of a verticle profile like a golden shiner that we have here in the delta. Optimum Baits does not make them anymore. They are productive baits that I want in my tackle box. I may be the responsible person that caused Mark to consider making a bait out of anything except PVC but he has heard the wood knock of my baits. Wood is more trouble but it fishes well and there is nothing like that wood knock like knocking on your front door to help call fish up. I made the first ones out of Bass wood, then I made two out of Pine, and now one of Balsa. I am always trying to get a good seal on the baits which is crucial for longevity and helps with the knock. I have been using Penetrating Epoxy which is a two part 2:1 Epoxy which is used to penetrate and stabilize wood that has lost strength due to dry rot or other failures. I can't find it in their store anymore. Tap Plastics told me it is just a longer cure 2 part epoxy that is also thinner. The key to my application is to heat the wood with my heat gun and keep applying this epoxy. This expands the air out of the end grain so that it sucks the epoxy in and gives me durability for my knock at the hinge. Previously I applied the epoxy then heated the lure and it really foams up. I like the idea of boiled linseed oil overnight soak but it still seems like I need to heat the wood up first or the air is just trapped in the wood end grain. Wood is like a bunch of tiny straws. However we do it, we still only really increase the amount of sealer at the end grain, I don't think any more sealer gets into the side and does not increase the durability of the sides of the "straws" because it doesn't soak in. The only way you can get more durability on the sides is with more coats for more thickness. Most of us who have been here awhile remember the video of the wood lure in sealer in a vacuum chamber. Flip the vacuum pump on and it looks like is blows up with all the air coming out of the wood end grain. You can get enough sealer sucked into the wood to make it sink like this. That is not what I am trying to do. Just warm up the wood enough that you get it a little ways into the end grain. By the way, I use a fan on low to keep fumes moving off from my work station. I am always wondering how either Allan Cole or Mike Shaw sealed their baits because they got them fairly durable. The last bait I made, the Balsa one, is probably at least half again more active waking than the Basswood ones but it is more difficult to make durable. (All wood baits will fail) The penetrating epoxy works well, but with the really light weight soft woods I have to put multiple coats of UV Cure Polyester Resin to help keep the hooks from penetrating the top coat. I would be interested to hear others opinions on this. Barry Barry, it's all your fault! Hahaha Quote Link to comment Share on other sites More sharing options...
Robert59 Posted October 2, 2020 Report Share Posted October 2, 2020 Thanks a whole bunch, guys. A lot of useful information. Quote Link to comment Share on other sites More sharing options...
