azsouth

glass or plastic or metal?

don't have the money/time to do more.....I am on call 24/7/365..... it is just what I can do with the time I have left over. So I wonder how many ideas have gone by the way side just because. The funny thing is I have a few more things that I am working on that are actually working versions.

here are some videos, not the best but you get the idea. https://youtu.be/KPsVzycUTf0 https://youtu.be/YY0KLwPxOkY https://youtu.be/XjENNdaTFR4

I think it was just a push in the right direction.

Yes I have videos, I don't know if they will download here ( I haven't tried to ) they are not the best but you can get the whole feel of how it runs for each bait.

Yes sir! I fish 2-3 times a week in Yuma ( my job has me there that much ) but no boat over there, so I fish from the bank.

v-block with a degree wheel make a v in a piece of wood to cradle the lure, using a degree wheel to be exact with the eye placement. How To Make a V-Block on the Table Saw - Woodworking Video (wwgoa.com)

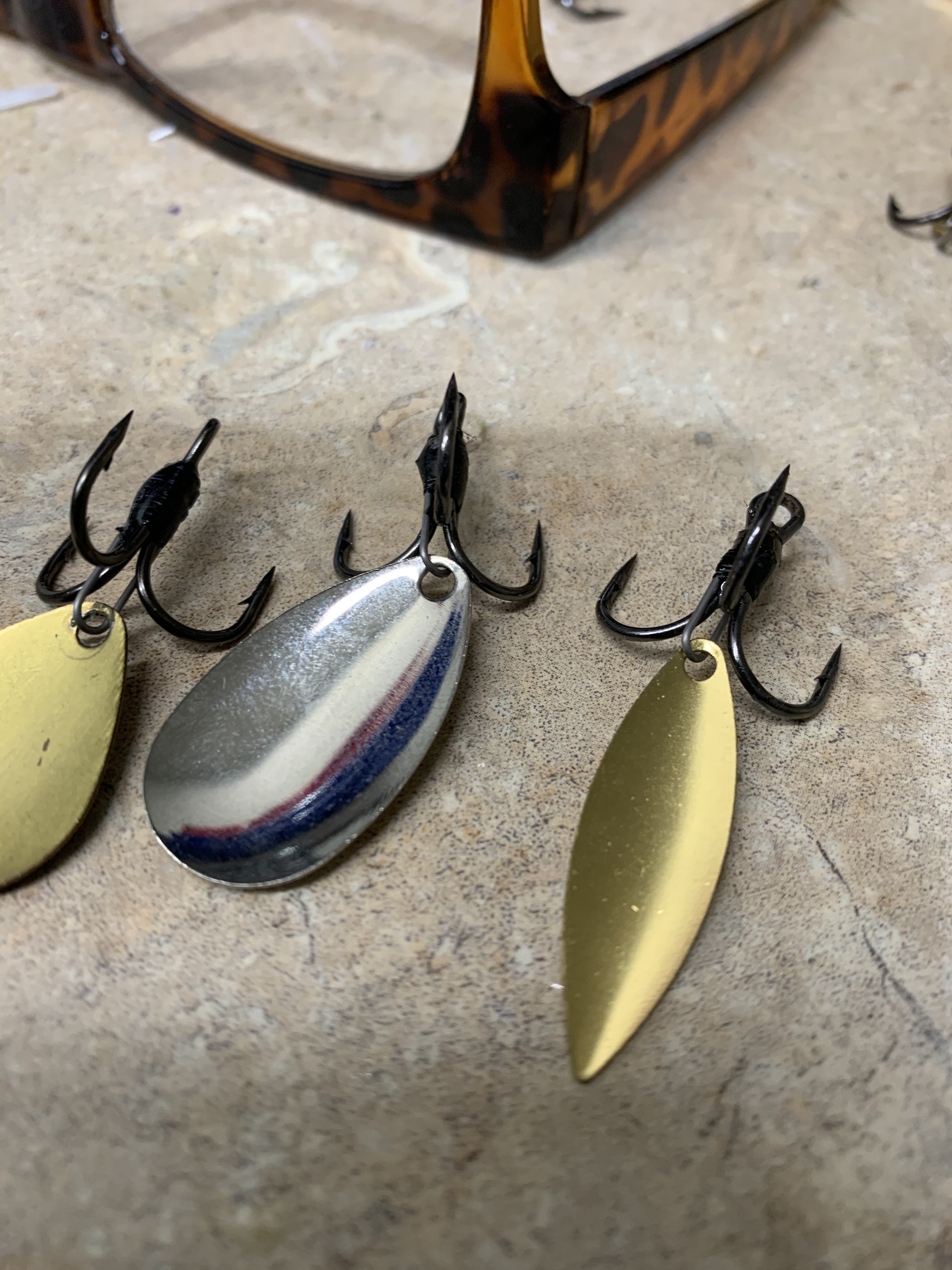

Yes sir, REAR HOOK HANGER ONLY! Frequency theory is above my pay grade, but I can/do understand movements of blades and baits. I also have been thinking of just making clear blades out of clear plastic but in the desert climate I live in they would not last. I am currently using willow, French, Colorado, and Indiana blades with good success.

A few things that I had to learn by mistake/not knowing. 1. weight of the design.... too much weight will cause the bait to do unintended things 2. exactly how it is attached.... NO swivel or split ring, those bring on weight and blade issues. 3. size and length of wire to each size hook.... again this brings weight back into it. 4. blade size and shape to the size of bait and bill.... blade should be smaller than the bill, normally. 5. Bait HAS TO BE TUNED CORRECT before attaching modification!!!! 6. .024 ss wire is the best for weight to durability ratio. These are just some of the things that I remember off the top of my head.

Yes sir, very simple design but it does work

yes! without a doubt the different blades have different affects! Basically the bigger the lip the bigger the bigger blade you can use and not blow it out.

originally a buddy had asked my to trick out his bladed swim jig and let the fish see something different, that is where the idea came from. I found out rather quickly if you had a swivel you got the flash but the blade spinning on it killed the action of the bait. making different versions of this modification I learned quite a bit about the effects of blades with/without a swivel.

I did not want to break the rules, they seem to change. here they are.

Pictures are up in the gallery for anyone who is interested in modifying your crank baits to hunt. 4th version in the pictures. I would be happy to answer any questions about them.

At this point I am not to worried, working with one last person if this falls through it is going to be public anyways.

Thanks for the replies everyone! just for more clarification my version has worked on Manns 1-, 1.5 and wiggle wart with a hunt that is about 3-6 inches sided to side, the only draw back at this time is the bait has to be tuned properly before adding modification. I am currently working on my 4th version of it. I intend on trying it with more baits but I only have so much time. Yes I sent to a company and I felt they were not doing much, so they are returning them.

Just to explain better this is not just an idea, I have actual working prototypes and has worked on four different baits so far. I believe this will work on just about any crankbait.

I have figured out how to get crank baits to hunt and have sent it to companies, but with no luck. So kind of at a cross roads here.... I do not have the money for a patent. So make it public or just sit on it? All comments welcome.

When I get a master airbrush, the first thing I do is take the needle out and polish it with a super fine polish/cleaner wax. Put a small amount of super fine polish/cleaner wax on q-tip/cotton swab and polish it, till it feels super smooth. My .02

lay side down then put something flat on other flat side measure distance between, half what the distance is your center easiest way to do it now is use an adjustable square, set it to the center measurement and put a pencil/pen and run it top and bottom. My .02

Nice job! a lot of people don't want to spend the time or effort to make jigs but it is the way to go if you want to be able to copy a bait.
