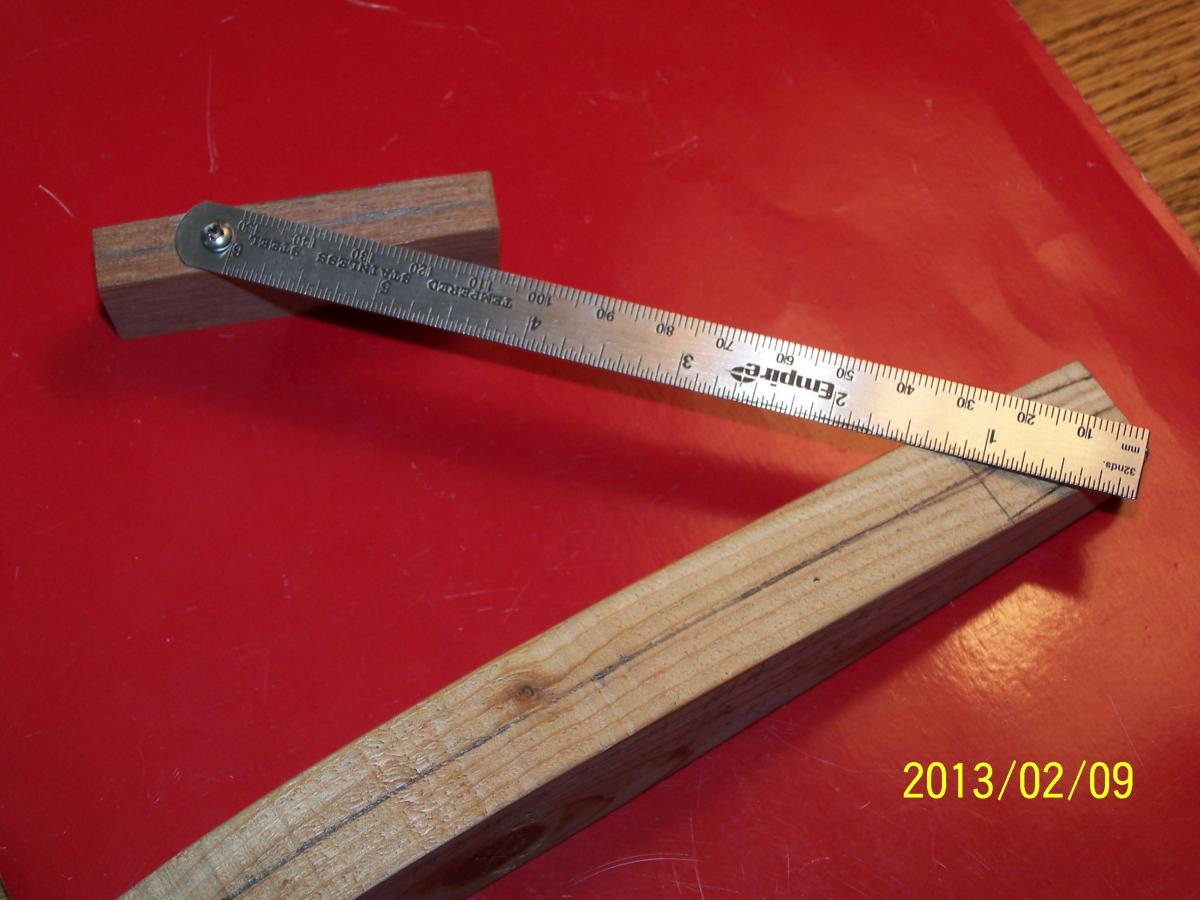

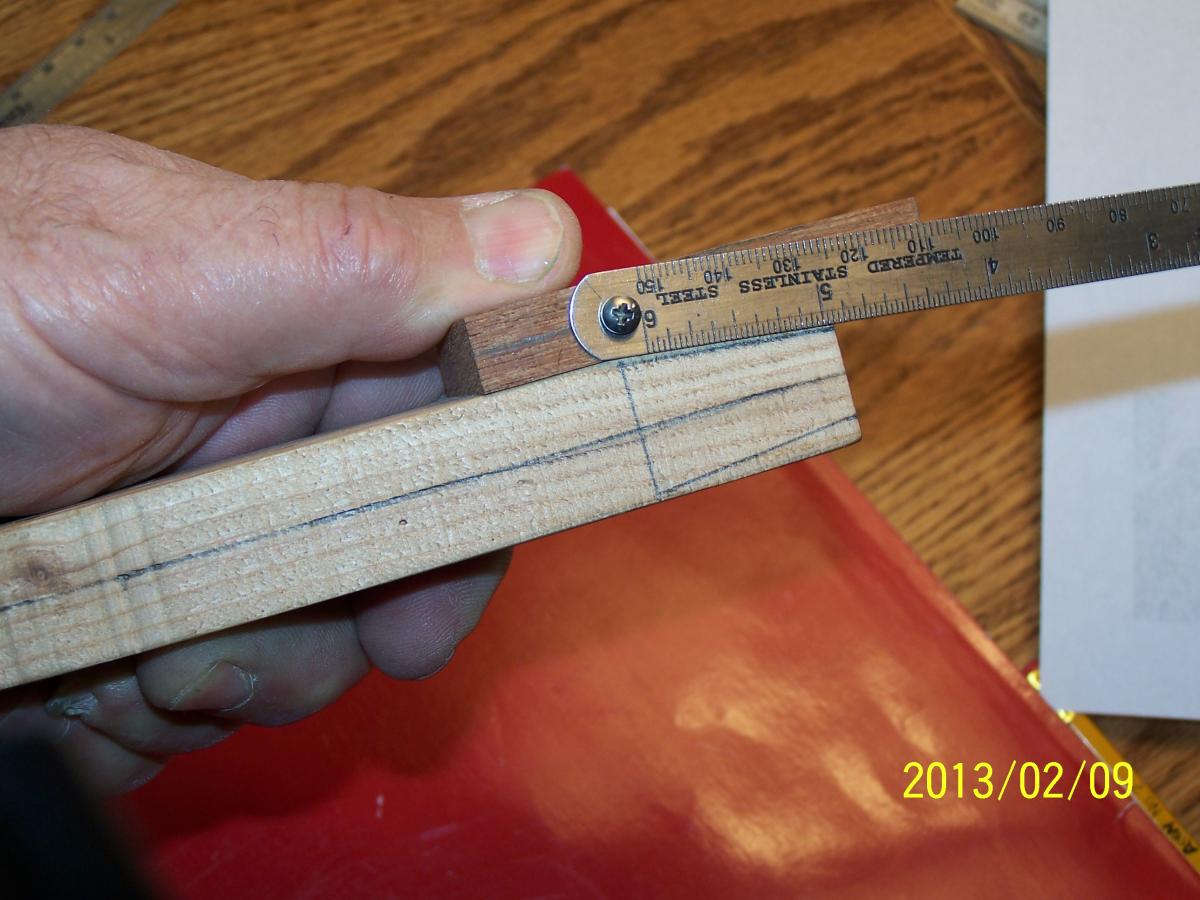

spoonpluggergino Posted February 9, 2013 Report Share Posted February 9, 2013 Here is another litle tool that I made to help me scribe angle line on a plug, seems like I needed a third hand Material you need A: One six inch flexible metal ruler. I use Empire from H.D. B: one #4 X 1/2 wood screw C: A small block of hard wood. Dimension I used 1/2 x 1 x 2-3/4 long To Build Very inportant. Holes on the Block and ruler must be on center otherwise the angles will be off , also make sure the screw is not to sloppy in the ruler A: Drill a small hole at the end of the ruler, Must be on center B: Drill another hole for the screw in the wood block that must be on center C: assemble the block to the ruler with the screw Gino Quote Link to comment Share on other sites More sharing options...
RayburnGuy Posted February 10, 2013 Report Share Posted February 10, 2013 A home made bevel gauge. Very innovative Gino. Quote Link to comment Share on other sites More sharing options...
Jdeee Posted February 10, 2013 Report Share Posted February 10, 2013 Gino That will save me a lot of time and make each bait the same. Many thanks Jeff Quote Link to comment Share on other sites More sharing options...
